GW211PP17 DC211 TT R3E  Square bore agricultural ball bearings Disc harrow bearings
  • GW211PP17 DC211 TT R3E Square bore agricultural ball bearings Disc harrow bearings
  • Price:
  • USD***
  • Mini Order:
  • 100 PCS
  • Capacity:
  • 100000 PCS /Month
  • Nearest Port:
  • Ningbo or Shanghai
  • Payment Terms:
  • TT L/C D/P D/A Paypal west-union
  • Price Terms:
  • FOB CIF CNF DDU
  • Lead Time:
  • 5-90 days

Product Packing & Delivery

Packing Detials:Industrial packing, Single box, or as customer's request


Delivery Detail:Be Allowed By Sea,By Air,By Rallway Or Express.

Product Quick Details

A square bore is the most prominent feature of this series agricultrual bearings ,their base structure belong to single row deep groove ball bearing. Used in applications where collars, set screws, or any other locking devices are not required. This series incorporates a close fitting metal shield backed by a molded rubber seal. Also available relubricable-prefix "G". GW211PP17 Square bore bearing also named DC211 TT R3E , KSC bearing corporation professional supply high quality GW211PP17 DC211 TT R3E Square bore agricultural ball bearings Disc harrow bearings for global buyer, the first choice of agricultural machine factory, farm machinery parts company and bearing company.

Bearing Number:GW211PP17
Interchanged No.:DC211 TT R3E
Brand:KSC, Neutral or OEM

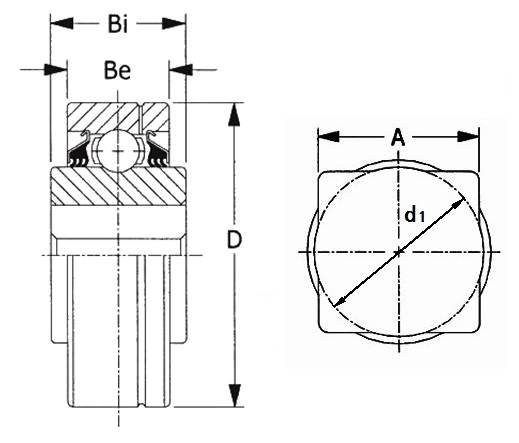

Size (mm):38.89 x 100 x 44.45 / 33.325
Material:GCr15 Chrome steel
Precision:P0 P6 P5
Clearence:C0 C2 C3 C4 C5
Cage:Steel cage or polyamide cage
Weight (Kg):1.188
Country of Origin:CHINA
Certification:ISO9001

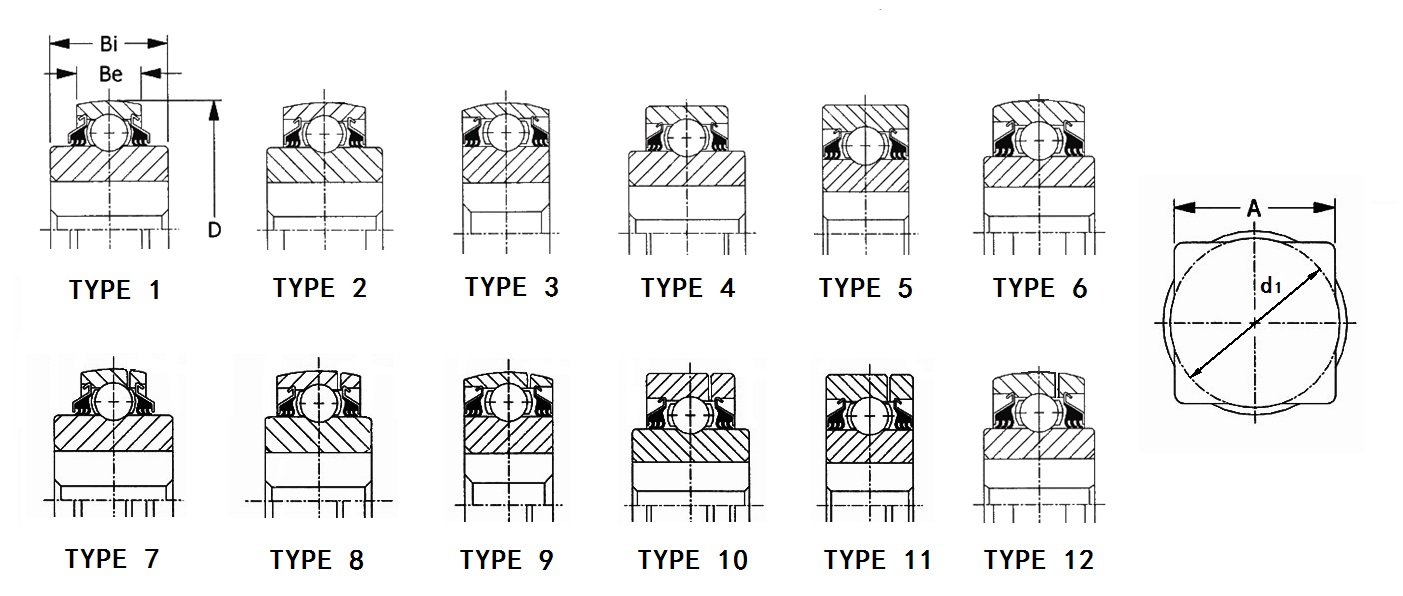

PEER UNIT NUMBER Type Shaft Size A D Be Bi Load Ratings Wt.
mm mm mm mm mm Dynamic Static kg
W209PPB5 2 31.75 32.766 85 30.175 36.52 7350 4150 0.794
W209PPB7 6 31.75 32.766 85.75 30.175 36.51 7350 4150 0.816
GW209PPB5 8 31.75 32.776 85 30.175 36.525 7350 4150 0.794
GW209PPB8 7 31.75 32.776 85 22 36.525 7350 4150 0.748
W211PP3 5 38.1 38.89 100 33.324 33.324 9740 5850 1.266
W211PPB3 3 38.1 38.89 100 33.324 33.324 9740 5850 1.207
GW211PPB3 9 38.1 38.89 100 33.325 33.325 9740 5850 1.207
GW211PP17 10 38.1 38.89 100 33.325 44.45 9740 5850 1.188
GW211PPB17 7 38.1 38.89 100 33.325 44.45 9740 5850 1.157
W211PP5 4 38.1 38.89 101.6 36.52 44.45 9740 5850 1.533
GW211PP5 10 38.1 38.89 101.6 36.525 44.45 9740 5850 1.22
W211PPB6 6 38.1 38.89 103.556 36.52 44.45 9740 5850 1.837
GW211PP3 11 38.1 39.89 100 33.325 33.325 9740 5850 1.266
W209PPB30 6 30 90 29 45 7350 4150 1.155
