HFL1226 One way needle roller clutch bearings
  • HFL1226 One way needle roller clutch bearings
  • Price:
  • USD0.5-5.0
  • Mini Order:
  • 10 PCS
  • Capacity:
  • 50000 PCS /Month
  • Nearest Port:
  • Ningbo or Shanghai
  • Payment Terms:
  • TT L/C D/P D/A Paypal west-union
  • Price Terms:
  • FOB CIF CNF DDU
  • Lead Time:
  • 3-60 days

Product Packing & Delivery

Packing Detials:Industrial packing, Single box+carton, or as customer's request


Delivery Detail:Be Allowed By Sea,By Air,By Rallway Or Express.

Product Quick Details

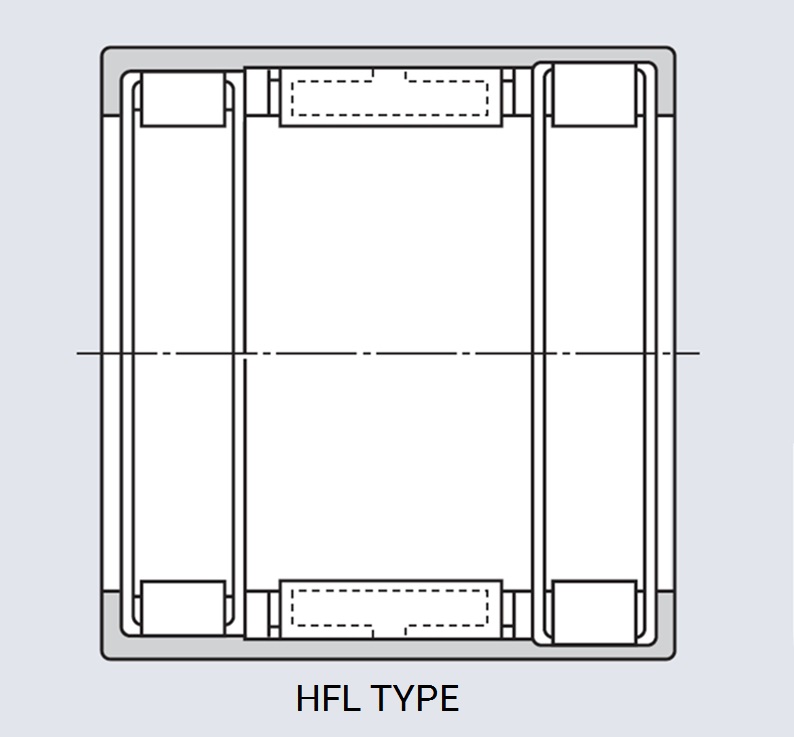

One way needle roller clutch bearings HFL has an outer ring drawn from thin steel plate by precision drawing, a clutching function, and an integral needle roller and cage assembly capable of supporting radial load at its both ends respectively. So, this HFL can function as clutch and, in addition,support radial load. Available shaft diameter range: 8 to 35 mm.

Bearing Number:HFL1226
Interchanged No.:FCB-12
Brand:KSC, Neutral or OEM
Size (mm):12 x 18 x 26
Material:chrome steel/cemented steel
Precision:Normal grade
Clearence:C2 C0 C3 C4
Cage:Nylon
Weight (Kg):0.018
Country of Origin:CHINA
Certification:ISO9001
Clutch bearing numbers Boundary dimensions mm Torque capacity Ltd. speed rpm weight
approx.
Common HF numbers INA Torrington Fw D C(0~0.25) Nm n nA g
HF1012 HF1012 FCL-10K 10 14 12 5.3 14000 11000 4
HF1216 HF1216 FC-12 12 18 16 12.2 11000 8000 11.6
HF1416 HF1416 14 20 16 17.3 9500 8000 13
HF1616 HF1616 FC-16 16 22 16 20.5 8500 7500 14
HF1816 HF1816 18 24 16 24.1 7500 7500 15.5
HFL1022 HFL1022 10 14 22 5.3 14000 11000 7.4
HFL1226 HFL1226 FCB-12 12 18 26 12.2 11000 8000 18
HFL1426 HFL1426 14 20 26 17.3 9500 8000 20.3
HFL1626 HFL1626 FC-16 16 22 26 20.5 8500 7500 22
HFL1826 HFL1826 18 24 26 24.1 7500 7500 24.4
