SER207-22 Insert ball bearing with cylindrical OD and snap ring
  • SER207-22 Insert ball bearing with cylindrical OD and snap ring
  • Price:
  • USD***
  • Mini Order:
  • 100 PCS
  • Capacity:
  • 100000 PCS /Month
  • Nearest Port:
  • Ningbo or Shanghai
  • Payment Terms:
  • TT L/C D/P D/A Paypal west-union
  • Price Terms:
  • FOB CIF CNF DDU
  • Lead Time:
  • 5-90 days

Product Packing & Delivery

Packing Detials:Industrial packing, Single box, or as customer's request


Delivery Detail:Be Allowed By Sea,By Air,By Rallway Or Express.

Product Quick Details

SER series insert bearings are single row ball bearing, with cylindrical outer ring and set-screw locking, also with snap ring , oil groove and hole, parallel bore. KSC bearing corporation professional supply SER207-22 insert bearings,high performance & good prices,the first choice of distributor and end user.

Bearing Number:SER207-22
Brand:KSC, Neutral or OEM
Size (mm):1.375" x 72 x 42.9 x 23.8 x 17.5
Material:GCr15 Chrome steel, Stainless steel, carbon steel
Precision:P0 P6
Clearence:C0 C2 C3 C4 C5
Cage:Steel cage or polyamide cage
Weight (Kg):0.61
Country of Origin:CHINA
Certification:ISO9001

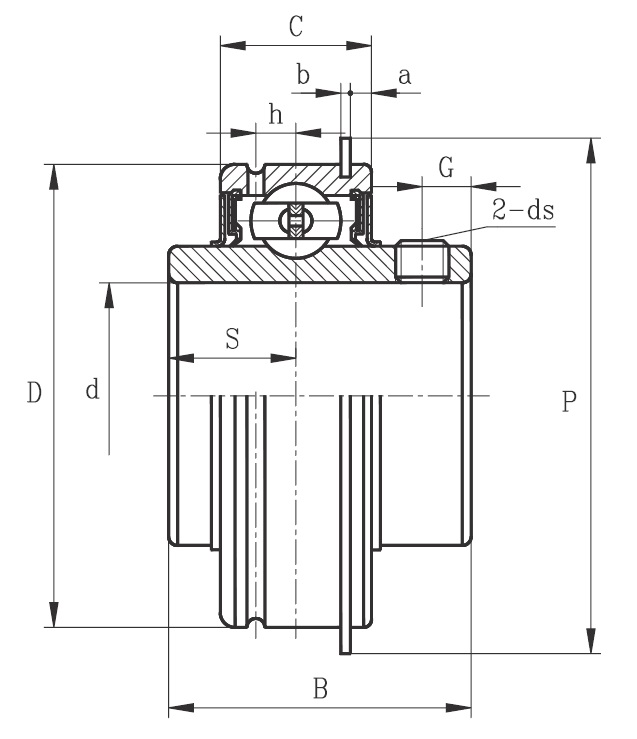

Bearing No. shaft Body dimension (mm) (in.) Load rating (KN) Weight
d D B   S a b p G h ds Dynamic Static approx.
in. mm   Cr Cor kg
SER207-20 1 1/4 72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25.7 15.2 0.61
SER207-21 1 5/16 72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25.7 15.2 0.61
SER207-22 1 3/8 72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25.7 15.2 0.61
SER207 35 72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 M8X1 25.7 15.2 0.61
SER207-23 1 7/16 72 42.9 23.8 17.5 3.18 1.65 78.6 6.5 5.8 5/16-24UNF 25.7 15.2 0.61
