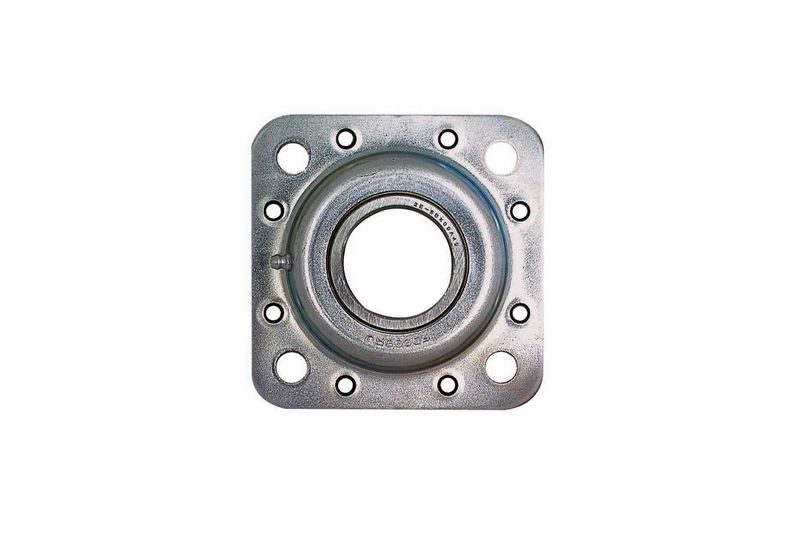

FD209RJ DHU491A DHU1-3/4R209 ST490 ST427 Four holes square flanged disc bearing unit
  • FD209RJ DHU491A DHU1-3/4R209 ST490 ST427 Four holes square flanged disc bearing unit
  • Price:
  • USD6-30
  • Mini Order:
  • 50 PCS
  • Capacity:
  • 30000 PCS /Month
  • Nearest Port:
  • Ningbo or Shanghai
  • Payment Terms:
  • TT L/C D/P D/A Paypal west-union
  • Price Terms:
  • FOB CIF CNF DDU
  • Lead Time:
  • 5-60 days

Product Packing & Delivery

Packing Detials:Industrial packing, Single box, or as customer's request


Delivery Detail:Be Allowed By Sea,By Air,By Rallway Or Express.

Product Quick Details

Flanged Disc Units FD209RJA is square pressing steel housing with a spherical insert ball bearing. KSC bearing corporation professional supply all kinds of agricultural bearings, welcome to order Flanged Disc Units FD209RJA, also named ST491A

Bearing Number:FD209RJA
Interchanged No.:ST491A
Brand:KSC, Neutral or OEM
Size (mm):1 3/4 RD x 1.687 x 1.64 x 5
Material:GCr15 /steel plate
Precision:P0 P6
Clearence:C0 C2 C3
Cage:Steel cage,Nylon cage
Weight (Kg):1.53
Country of Origin:CHINA
Certification:ISO9001
Unit Number Shaft Size Housing
Width
Inner Ring
Width
Square Bolt Circle
Diameter
  Frame opening Bolt Hole
Diameter
Bolt Hole Weight approx.
A B C D E t M min F Width G Length H kg
FD209RJ 1 3/4 RD 1.64 1.687 5 5 6 3.865 0.531 1.53
FD209RJA 1 3/4 RD 1.64 1.687 5 5 6 3.865 0.531 1.53
FD209RE 1 1/2 RD 1.64 1.687 5 5 6 3.865 0.531 0.687 1.58
FD209RK 1 1/4 SQ 1.64 1.687 5 5 6 3.865 0.531 0.687
FD209RM 1 1/8 SQ 1.64 1.687 5 5 6 3.865 0.531 0.687 1.86
FD210R 1 1/8 SQ 1.75 1.75 5 5 6 3.865 0.531
FD211RBA 2 3/16 RD 1.799 2.187 5.5 5.5 8 4.491 0.531 2.42
FD211REA 1 3/4 RD 1.799 2.187 5.5 5.5 8 4.491 0.531 2.67
FD211RJA 1 15/16 RDC 1.799 2.125 5.5 5.5 8 4.491 0.531 2.58
FD211RKA 1 3/4 H 1.799 2.188 5.5 5.5 8 4.491 0.531
FD211RKB 1 3/4 H 1.799 2.188 5.5 5.5 8 4.491 0.531
FD211RM 1 1/2 SQ 1.799 2 5.5 5.5 8 4.491 0.531 0.687
FD211RP 40(mm) SQ 1.799 2.006 5.5 5.5 8 4.491 0.531
ST740 2 3/16 RD 1.811 2.187 5.5 5.5 7 4.491 0.531 2.42
